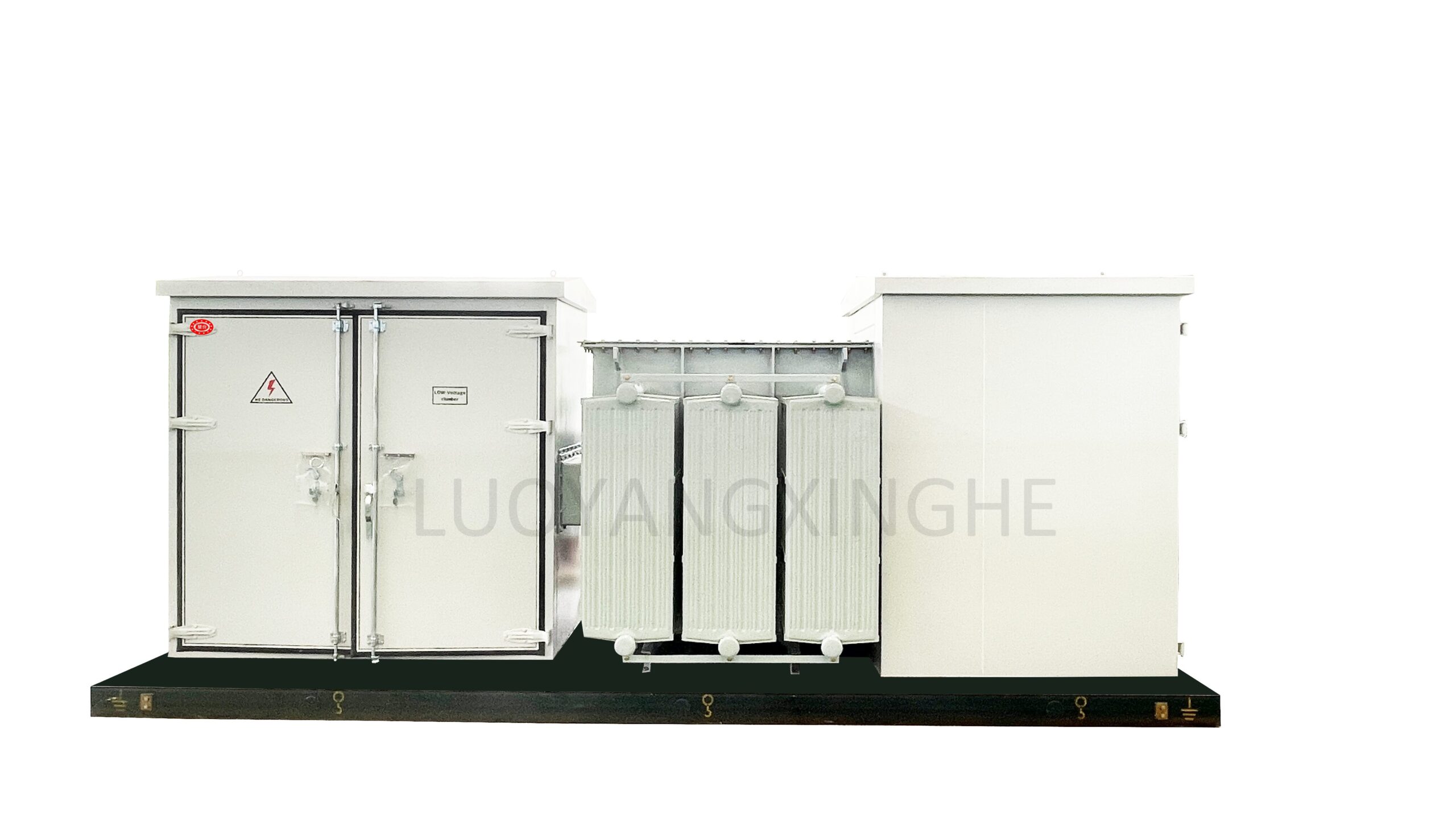

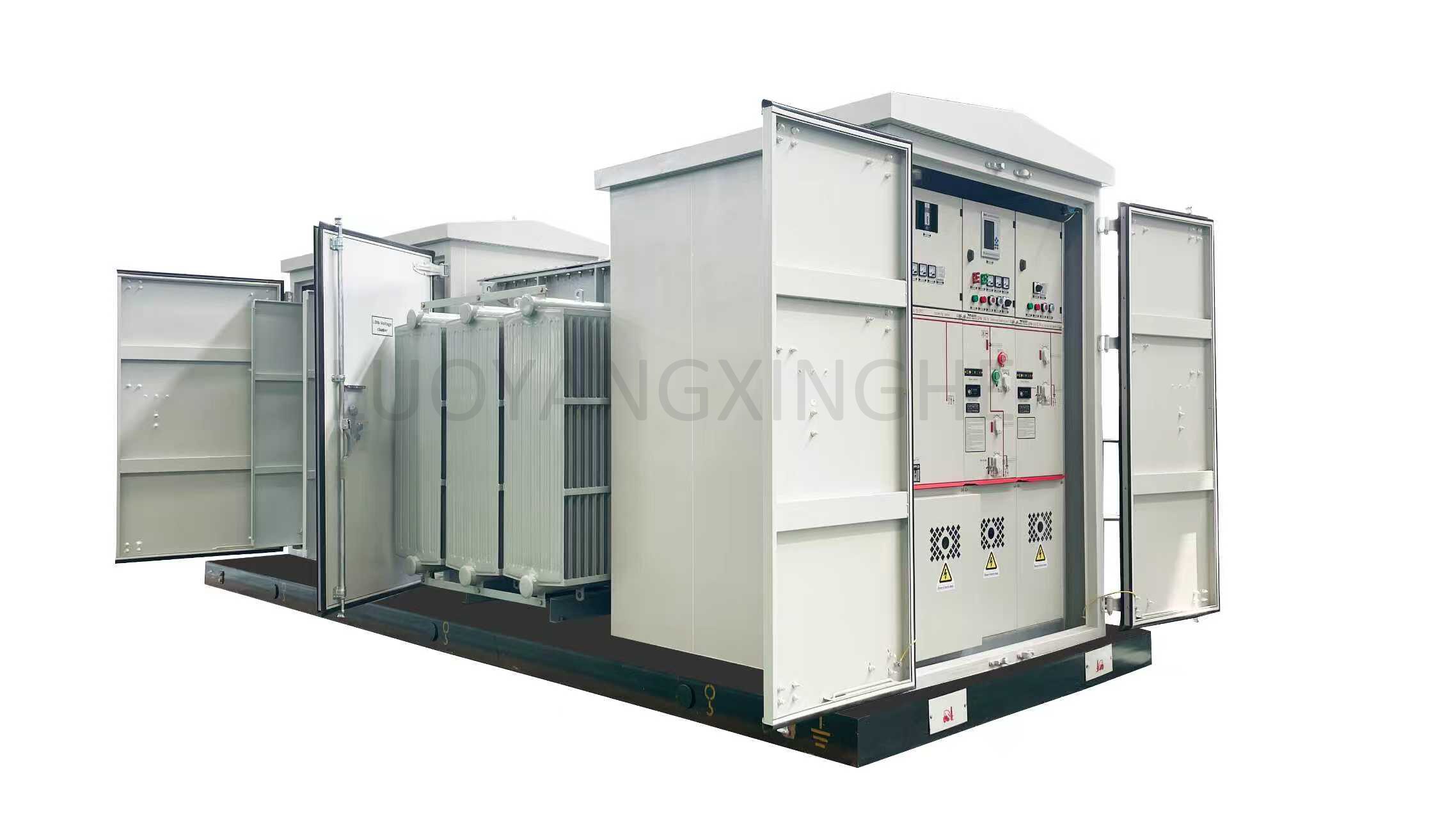

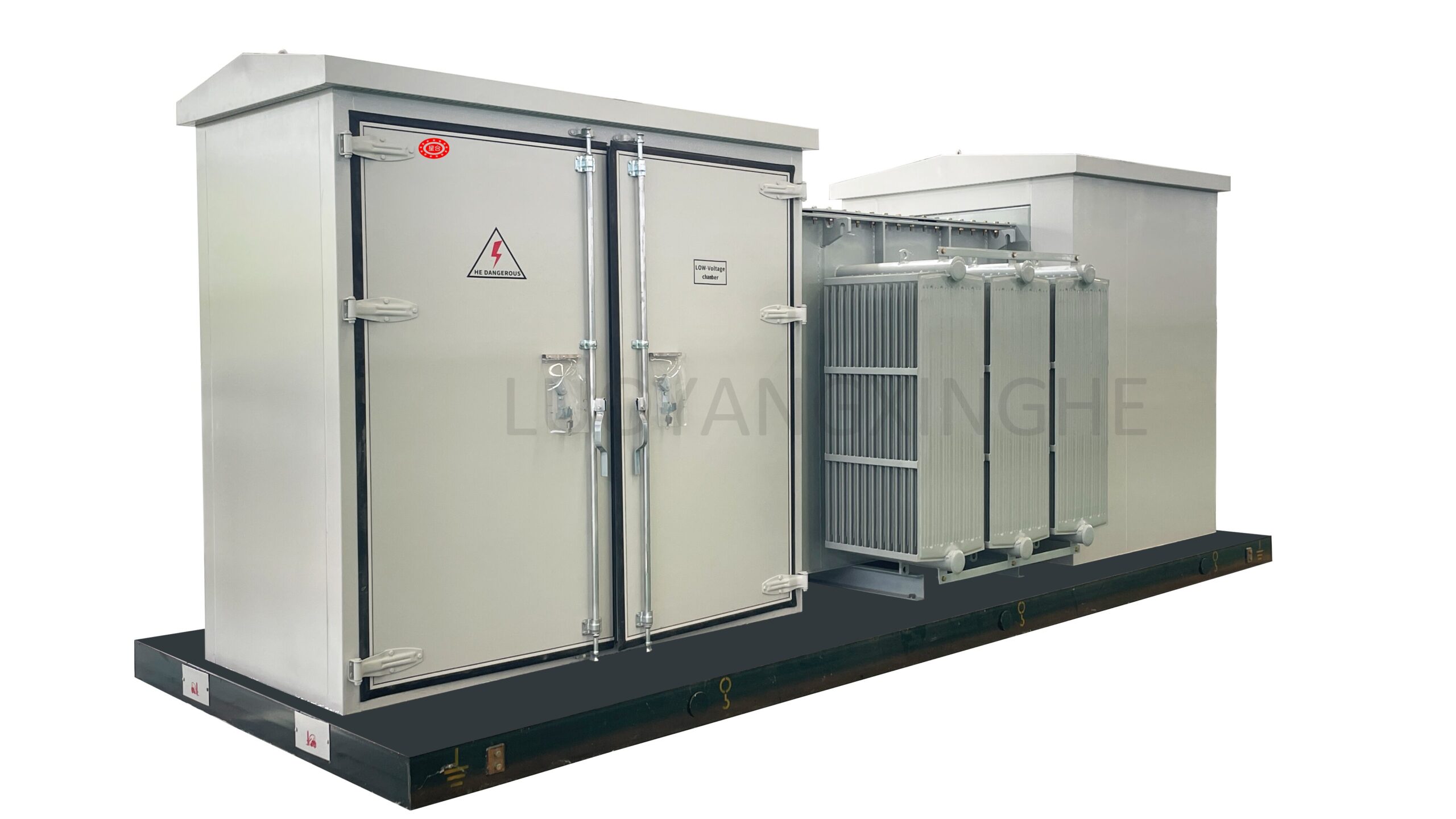

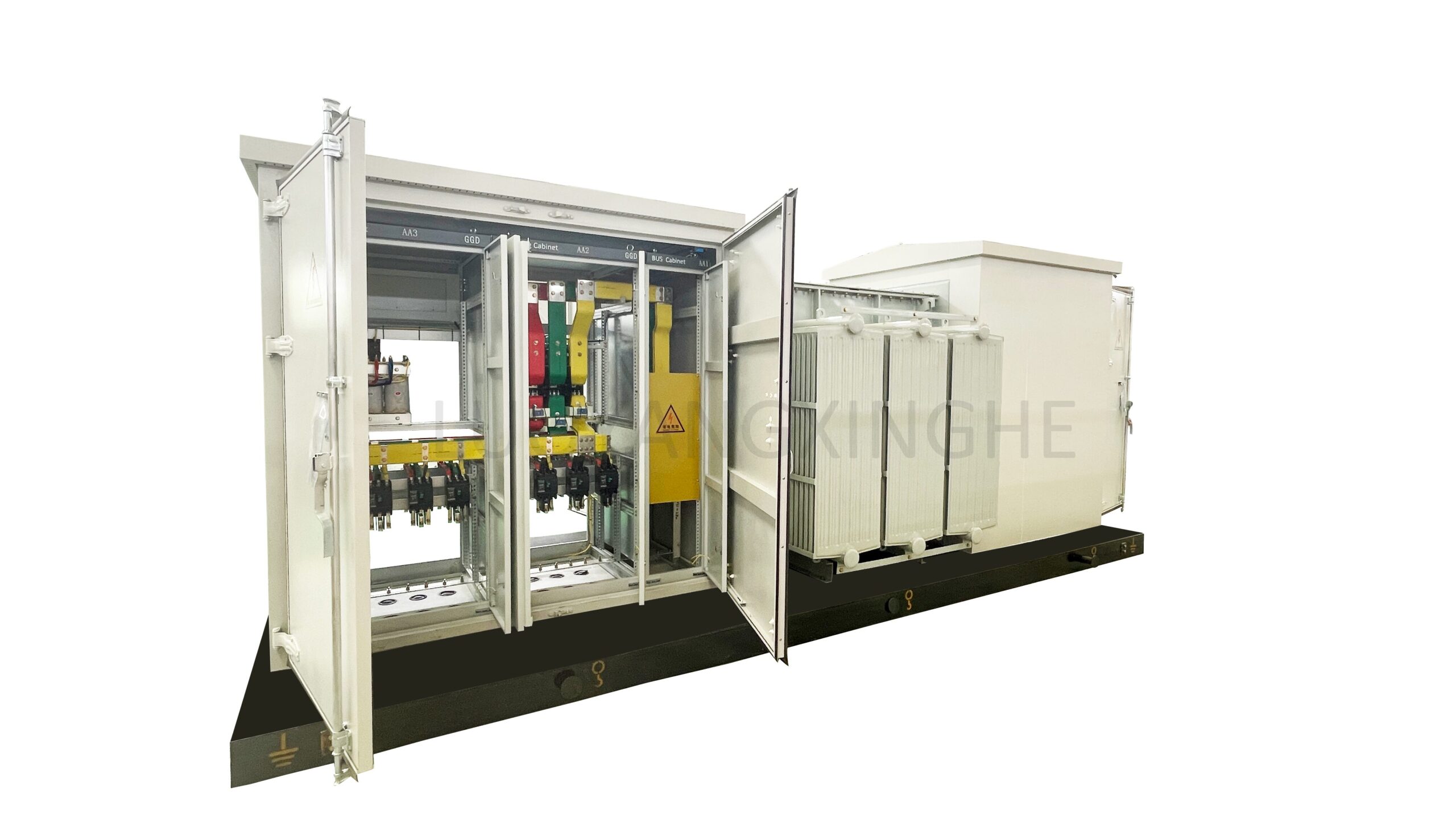

PV substation is a prefabricated high/low voltage substation integrating a step-up transformer, high-voltage switchgear, low-voltage switchgear, and corresponding auxiliary equipment.
It operates at voltage levels of 35kV and below, with a capacity range of 200~2500kVA.
It is primarily suitable for the new energy industry.
| Feature Category | Detailed description |
| Structural layout | The transformer is arranged in a triangular or rectangular pattern, divided into a high-voltage compartment, a low-voltage compartment, and the transformer itself. The transformer is usually placed outside the enclosure to dissipate heat through natural climate. |
| High voltage unit | Options include vacuum load switch-fuse combination appliances, vacuum circuit breakers, or C-GIS (gas-insulated switchgear). |
| Low voltage unit | The equipment uses GGD AC low-voltage switchgear and is arranged in a hierarchical, functional, and compartmentalized manner. |
| Transformer | Most are oil-immersed transformers with a wide capacity range. Some products employ stepped joints or wound core technology to reduce no-load losses and noise. |
| Enclosure and Protection | The enclosure is made of heavy-duty steel plates with an anti-corrosion coating. The high and low voltage compartments have an IP54 protection rating, while the transformer compartment has an IP68 rating, effectively protecting against rain, snow, dust, and corrosion. |
| Safety and Reliability | The busbar connection ensures high reliability. A gas relay is installed to provide light gas alarm and heavy gas protection. The isolating blade, arc-extinguishing chamber, and fuse of the high-voltage switch can be placed in separate compartments for easy maintenance. |
| High-pressure compartment | Item | Unit | Parameter | ||
| Rated frequency | Hz | 50 /60Hz | |||
| Rated voltage | kV | 12.47kV 13.2kV 13.8kV 14.4kV 19.92KV | 22.9kV | 34.5kV | |
| Maximum voltage | kV | 7.2kV | 12KV , 24KV | 40.5KV | |
| Rated current | A | 400，630，1000，1250，1600，2000，2150，… ect | |||
| Transmission current | A | 1200 -3150 A | |||
| Rated short-circuit breaking current | KA | 20, 31.5 | |||
| Transformer compartment | Rated voltage | kV | 3.3kV、6.0kV、6.6kV | 10KV 11KV 13.8KV 15KV 20KV 22kv | 30KV 33KV 35KV 36KV |
| Rated power capacity | KVA | 200 KVA-2.5 MVA | |||
| Tapping Range | % | ± 2 X 2.5%，± 5% | |||
| Connection Symbol | Yyn0, Dyn11 | ||||
| Short-circuit impedance | % | 4.0 , 4.2, 4.5, 6, 8 | |||
| Low pressure compartment | Rated voltage | 220, 380, 400, 415, 433, 440, 660, 690,800 | |||
| Rated current of main circuit | A | 50 -4000 | |||
| Branch current | A | 5-800 | |||
| Enclosure | Protection level | ||||
| High-pressure compartment | IP33，ip65 | ||||
| Low pressure compartment | IP33 | ||||
| Transformer compartment | IP23 | ||||
| Noise level | dB | ≤ 50 | |||
