Describtion: PV substation is a prefabricated high/low voltage substation integrating a step-up transformer, high-voltage switchgear, low-voltage switchgear, and corresponding auxiliary equipment. It operates at voltage levels of 35kV and below, with a capacity range of 200~2500kVA. It is primarily suitable for the new energy industry.

Main technical parameters: capacity range 30~7000kVA, rated voltage level 10~35kV, vacuum circuit breaker, vacuum load switch fuse combination device, SF6 switch, etc. can be configured on the high voltage side, and GGL, GGD, GCS, MNS and other cabinet types can be configured on the low voltage side.

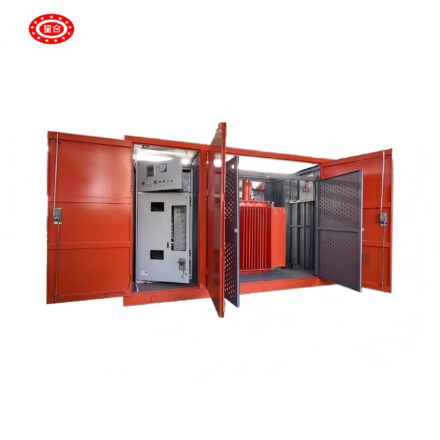

YB series prefabricated substation consists of four parts: high voltage room, low voltage room, transformer room and enclosure.
