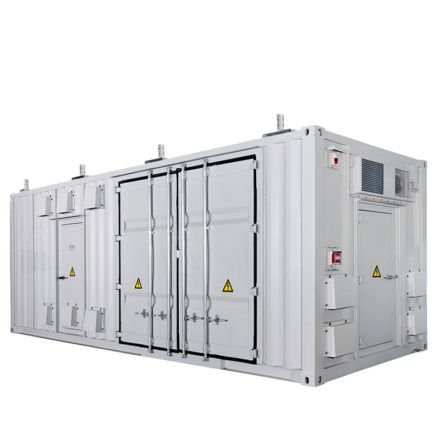

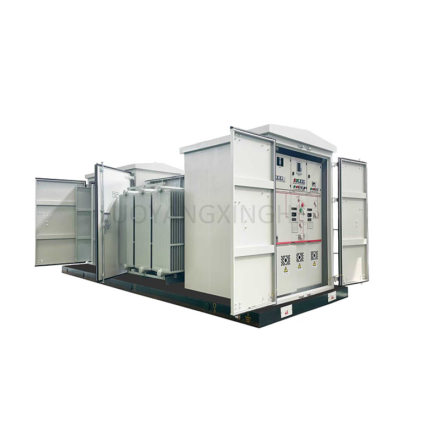

Describtion: PV substation is a prefabricated high/low voltage substation integrating a step-up transformer, high-voltage switchgear, low-voltage switchgear, and corresponding auxiliary equipment. It operates at voltage levels of 35kV and below, with a capacity range of 200~2500kVA. It is primarily suitable for the new energy industry.

Main technical parameters: capacity range 30~7000kVA, rated voltage level 10~35kV, vacuum circuit breaker, vacuum load switch fuse combination device, SF6 switch, etc. can be configured on the high voltage side, and GGL, GGD, GCS, MNS and other cabinet types can be configured on the low voltage side.

Product Information: Phase：Three Output Voltage: 480V, 440V,400V,380V Input Voltage: 11kv, 15kv, 20kv Frequency: 50Hz, 60Hz Application: Power transformer

Xinghe Brand S11 and S13series 10 KV oil-immersed distribution transformers are new products that meet international standards.

Xinghe Brand 20KV oil-immersed distribution transformer is an important
equipment in the power distribution network and the power supply and distribution system of industrial and mining enterprises.

35 kV oil-immersed transformer is an important component of the 35 kV voltage level transformation of the power grid.

The 110kv three-phase oil-immersed power transformer is manufactured in accordance with the International Electrotechnical Commission standard IEC76 and the People’s Republic of China standard GB1094.1-2-1996/GB1094.3,-1985.

Singles phase transformer has the characteristics of high efficiency and low loss, can save a lot of power consumption and operating costs, and has significant social benefits.

10KV SCB series dry-type distribution transformer uses a thin layer of epoxy resin to seal the high and low-voltage winding dry-type transformers.
