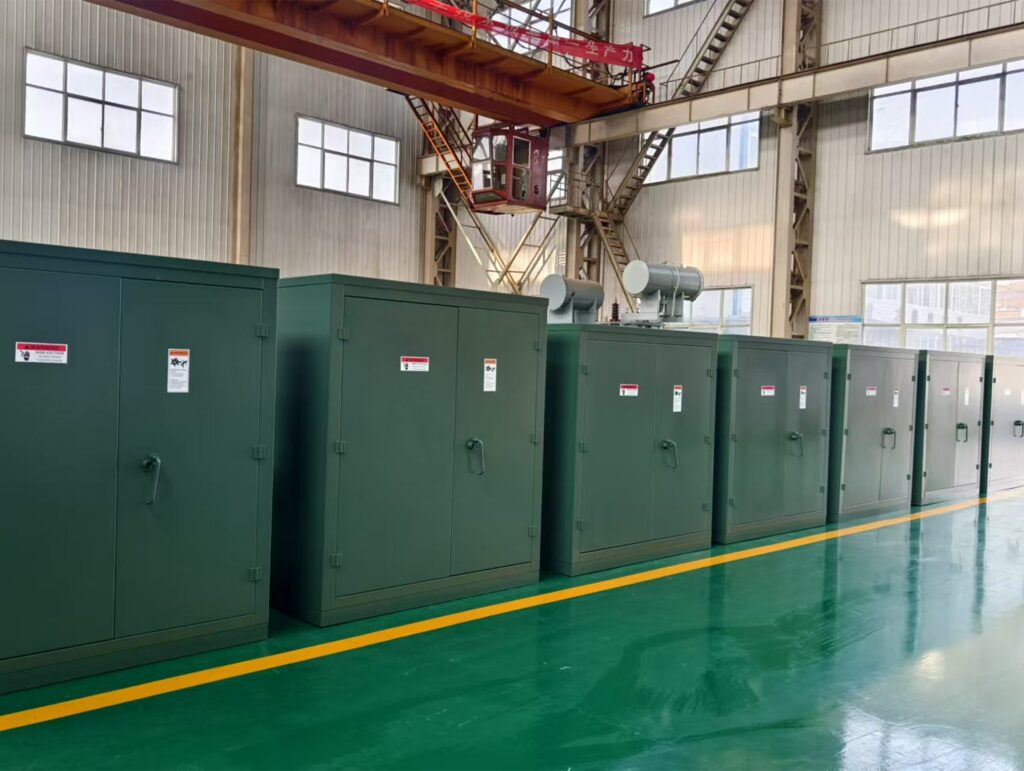

The Pad Mounted Transformer features a fully sealed, fully insulated structure. Its compact design takes up only about 1/3 the footprint of a European‑style box transformer of the same capacity. This makes it ideal for urban distribution, industrial parks, and renewable energy projects where space is limited.

---

1. Key Advantages

1.1 High Personal Safety & Reliability

The fully sealed and insulated construction eliminates live part exposure. Therefore, it provides reliable personal safety protection even in high‑traffic or public areas.

1.2 Flexible Power Supply Modes

The unit supports both ring network and terminal power supply modes. The cable connector can be plugged and unplugged multiple times under a load current of 200A. In emergency situations, it can function as a load switch and also has isolating switch characteristics.

1.3 Double Fuse Full‑Range Protection

The pad mounted transformer adopts a double fuse full‑range protection scheme. This design significantly reduces operating costs by providing reliable overcurrent and short‑circuit protection without frequent maintenance.

1.4 Corrosion‑Resistant for Harsh Environments

The enclosure undergoes anti‑corrosion design and special spray coating treatment. Therefore, it performs well in harsh environments – including stormy areas, high‑humidity zones, and highly polluted regions (e.g., heavy industrial or coastal areas).

1.5 Additional Technical Benefits

• No neutral point drift – ensures stable voltage under unbalanced loads.
• Low noise – suitable for residential or quiet zones.
• Good lightning protection performance – reduces surge damage risk.

✅ If the low‑voltage side is equipped with an intelligent undervoltage controller, the system will cut off power when abnormal voltage occurs on the low‑voltage bus – guaranteeing safe power supply.

---

2. Typical Applications

Application	Reason
Urban power distribution networks	Compact size, flexible modes
Industrial parks & factories	High protection, double fuse protection
Solar and wind power collection	Outdoor‑ready, corrosion‑resistant
Residential communities	Low noise, safe to operate
Temporary or emergency power supply	Plug‑and‑play cable connectors

---

3. Comparison at a Glance

Feature	Pad Mounted Transformer	European Style Box Transformer (similar capacity)
Footprint	~1/3	3× larger
Sealing	Fully sealed, fully insulated	Partially sealed
Protection	Double fuse full range	Often single fuse or relay
Environment suitability	Harsh (storm, pollution)	Standard
Noise level	Low	Higher typical

---

4. Why Choose Our Pad Mounted Transformer?

• Space‑saving – fits where a full box transformer cannot.
• Safer – fully sealed design protects personnel.
• Cost‑effective – lower operating costs due to double fuse protection.
• Versatile – ring or terminal, pluggable connectors.
• Rugged – anti‑corrosion, high pollution tolerance.
